Standard Modules
Begin with a documented series and its planning envelope.
ST-30R / MC-05

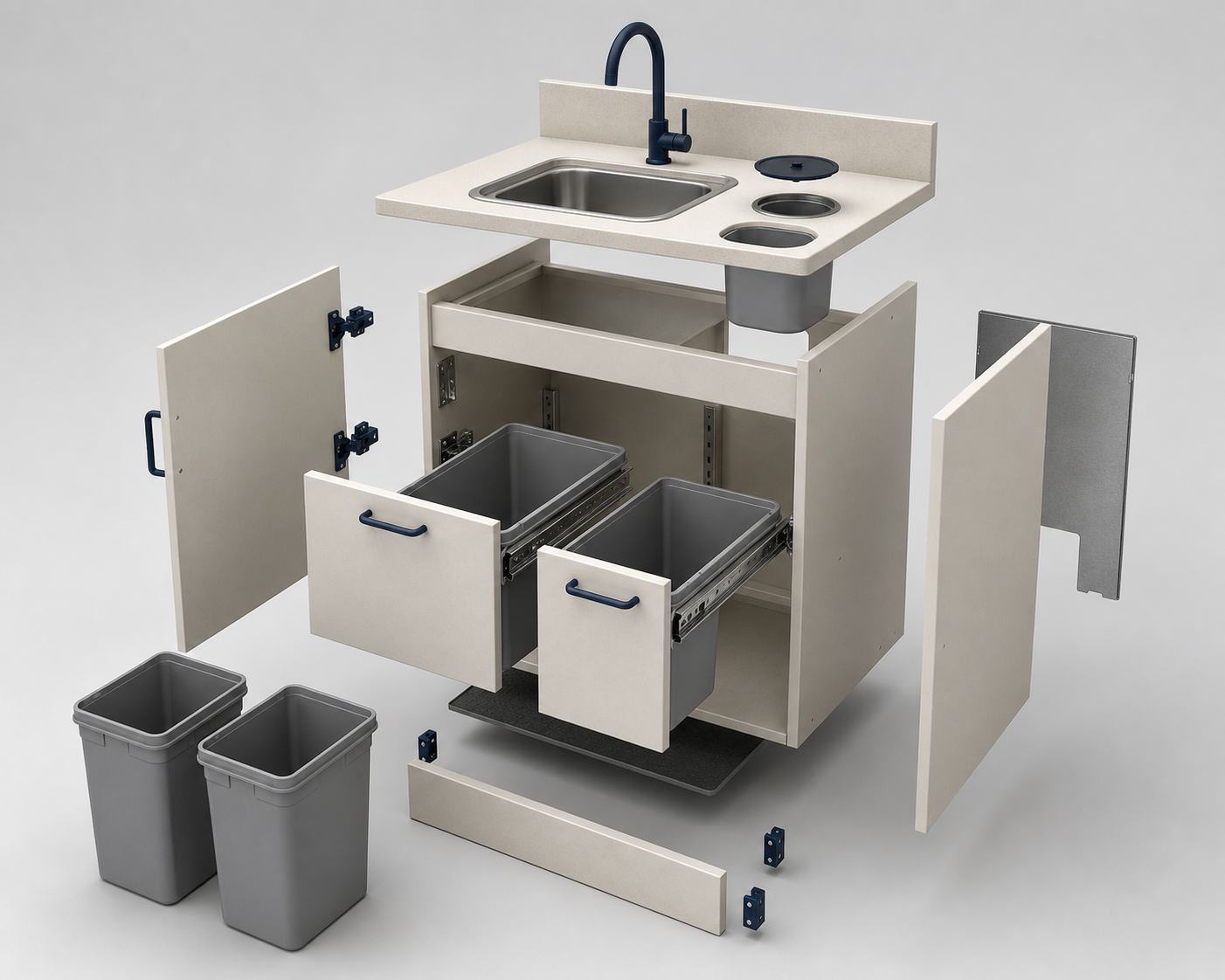

Soiled Receiving Module
Shown is a BPA configurable planning concept informed by clinical workflow research. Specifications can be customized to project needs.
Configuration: Custom sizing or validated dimensions
Final dimensions and details are coordinated to the approved project requirements.
Configure this moduleFinal dimensions and details are coordinated to the approved project requirements.
CONFIGURABLE PLANNING ENVELOPE30–48 W × 24–30 D × 34–36 H in
Standard planning envelope: 30–48 W × 24–30 D × 34–36 H in. Final dimensions follow approved shop drawings.
APPLICATIONSDental sterilization · Instrument processing
Workflow position: Incoming contaminated side · Before cleaning
CORE MODULE STRUCTURE
- Receiving worksurface
- Enclosed lower storage
PROJECT-CONFIGURED OPTIONS
- Sink bay
- Waste sorting
- Container landing zone
Project-Configured
Select listed options and coordinate dimensions through approved shop drawings.
Fully Custom
Develop a room-specific cabinet package when standard modules do not resolve the workflow.
PLANNING FEATURES
- Planned receiving worksurface
- Planned enclosed lower storage
- Configuration may be adapted to the approved room plan
VERIFY BEFORE RELEASE
- Facility infection-control plan
- Plumbing
- Chemical/moisture compatibility
