Standard Modules
Begin with a documented series and its planning envelope.

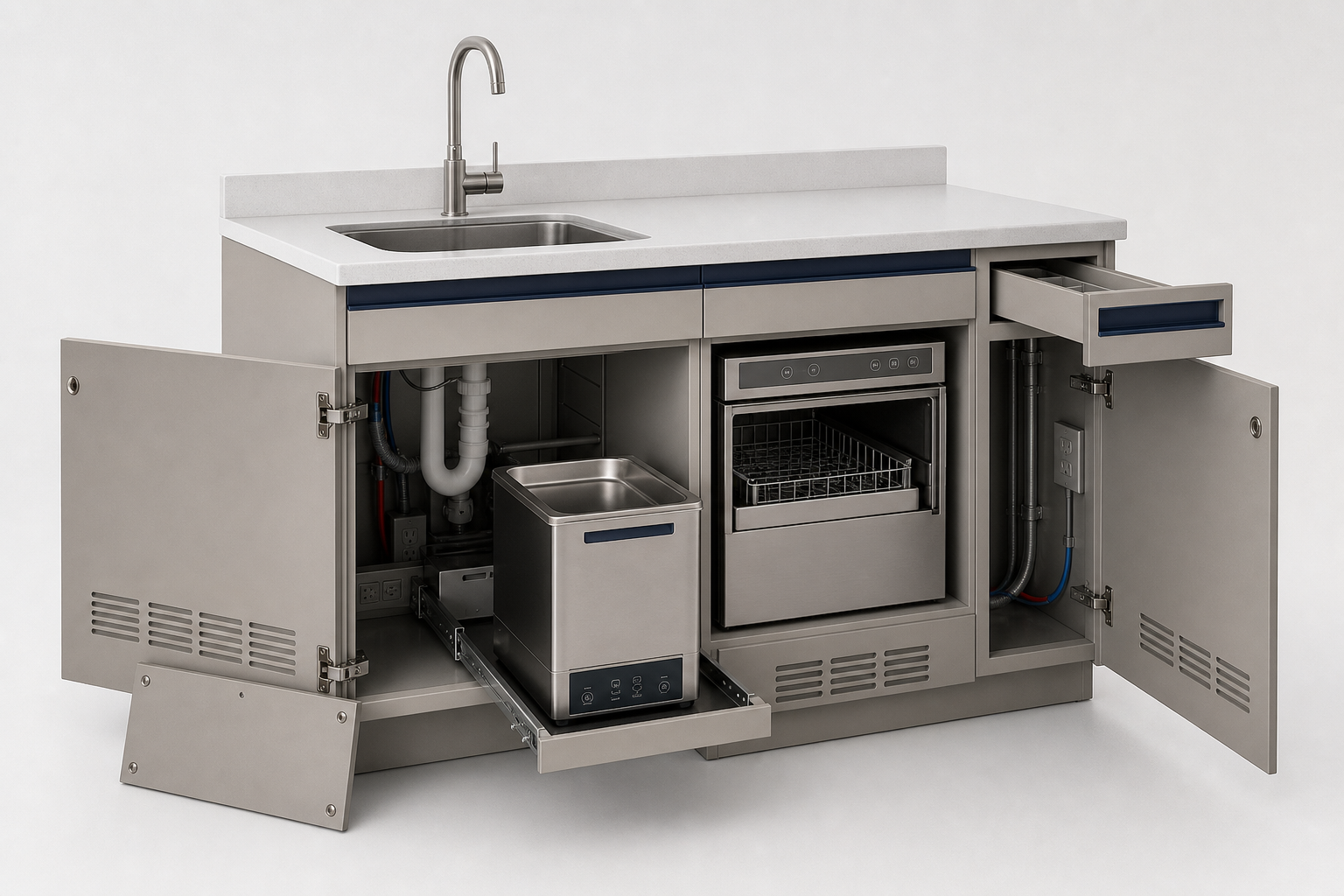

ST-36W / MC-06
Wash & Equipment Module
Shown is a BPA configurable planning concept informed by clinical workflow research. Specifications can be customized to project needs.
Configuration: Custom sizing or validated dimensions
Final dimensions and details are coordinated to the approved project requirements.
Configure this moduleFinal dimensions and details are coordinated to the approved project requirements.
CONFIGURABLE PLANNING ENVELOPE36–72 W × 24–30 D × 34–36 H in
Standard planning envelope: 36–72 W × 24–30 D × 34–36 H in. Final dimensions follow approved shop drawings.
APPLICATIONSSterilization center · Clinic processing room
Workflow position: Cleaning stage · Between receiving and preparation
CORE MODULE STRUCTURE
- Equipment-ready base bays
- Service-access planning
PROJECT-CONFIGURED OPTIONS
- Ultrasonic bay
- Instrument washer bay
- Sink configuration
Project-Configured
Select listed options and coordinate dimensions through approved shop drawings.
Fully Custom
Develop a room-specific cabinet package when standard modules do not resolve the workflow.
PLANNING FEATURES
- Planned equipment-ready base bays
- Planned service-access planning
- Configuration may be adapted to the approved room plan
VERIFY BEFORE RELEASE
- Named equipment
- Ventilation/heat
- Electrical and plumbing
