Standard Modules
Begin with a documented series and its planning envelope.

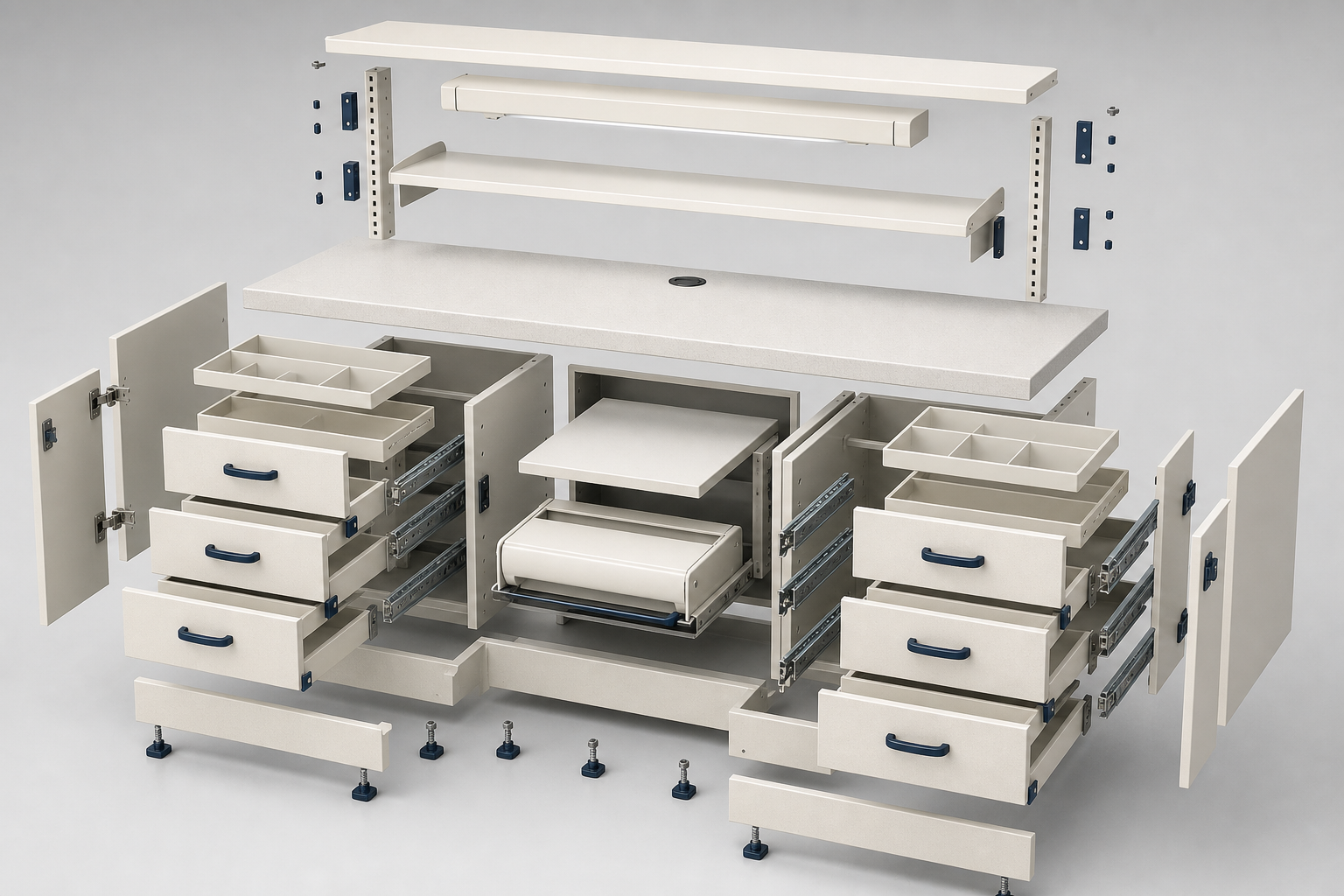

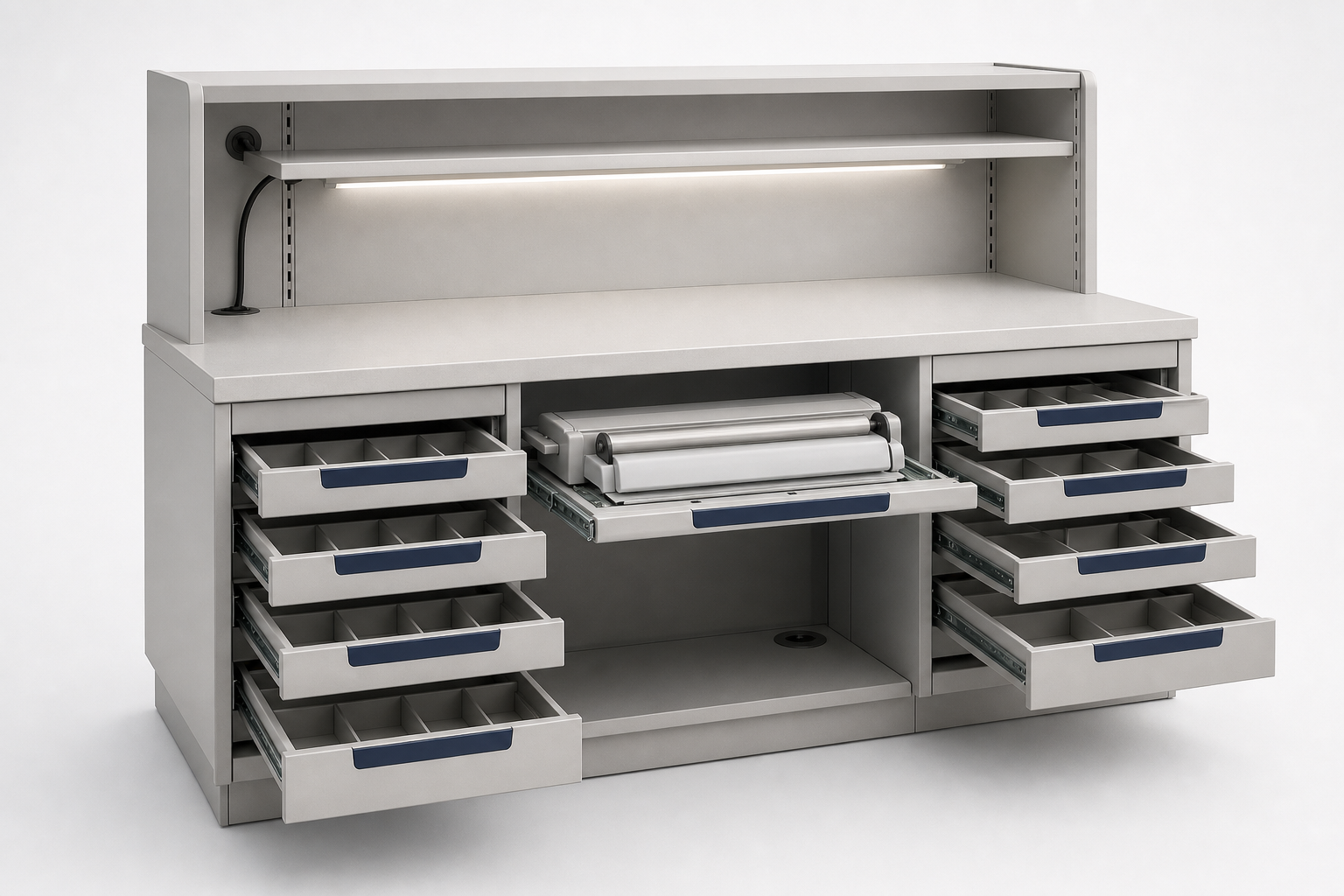

ST-48P / MC-07
Preparation & Packaging Workstation
Shown is a BPA configurable planning concept informed by clinical workflow research. Specifications can be customized to project needs.
Configuration: Custom sizing or validated dimensions
Final dimensions and details are coordinated to the approved project requirements.
Configure this moduleFinal dimensions and details are coordinated to the approved project requirements.
CONFIGURABLE PLANNING ENVELOPE48–96 W × 24–30 D × 34–36 H in
Standard planning envelope: 48–96 W × 24–30 D × 34–36 H in. Final dimensions follow approved shop drawings.
APPLICATIONSInstrument processing · Dental sterilization
Workflow position: Clean preparation side · Before sterilizer loading
CORE MODULE STRUCTURE
- Open preparation surface
- Drawer and tray zones
PROJECT-CONFIGURED OPTIONS
- Task light
- Packaging device bay
- Upper storage
Project-Configured
Select listed options and coordinate dimensions through approved shop drawings.
Fully Custom
Develop a room-specific cabinet package when standard modules do not resolve the workflow.
PLANNING FEATURES
- Planned open preparation surface
- Planned drawer and tray zones
- Configuration may be adapted to the approved room plan
VERIFY BEFORE RELEASE
- Workflow approval
- Equipment utilities
- Worksurface and drawer loads
