Standard Modules
Begin with a documented series and its planning envelope.

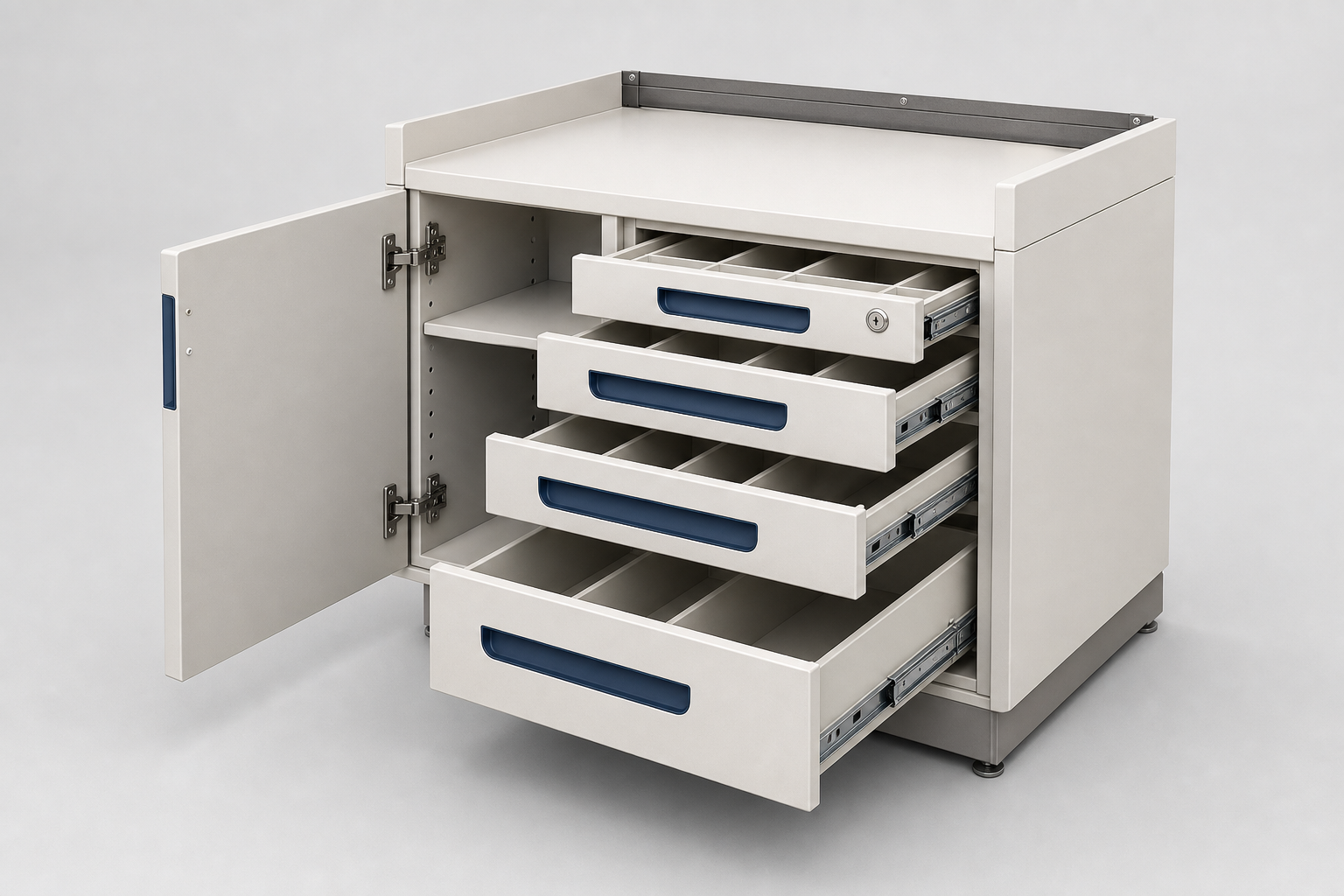

EX-24D / MC-10
Exam Drawer Base Cabinet
Shown is a BPA configurable planning concept informed by clinical workflow research. Specifications can be customized to project needs.
Configuration: Custom sizing or validated dimensions
Final dimensions and details are coordinated to the approved project requirements.
Configure this moduleFinal dimensions and details are coordinated to the approved project requirements.
CONFIGURABLE PLANNING ENVELOPE18–30 W × 18–24 D × 28–36 H in
Standard planning envelope: 18–30 W × 18–24 D × 28–36 H in. Final dimensions follow approved shop drawings.
APPLICATIONSExam room · Procedure room
Workflow position: Clinician work wall · Point-of-use supplies
CORE MODULE STRUCTURE
- Multi-drawer base
- Leveling/anchorage zone
PROJECT-CONFIGURED OPTIONS
- Drawer height mix
- Lock-ready drawer
- Wall-hung configuration
Project-Configured
Select listed options and coordinate dimensions through approved shop drawings.
Fully Custom
Develop a room-specific cabinet package when standard modules do not resolve the workflow.
PLANNING FEATURES
- Planned multi-drawer base
- Planned leveling/anchorage zone
- Configuration may be adapted to the approved room plan
VERIFY BEFORE RELEASE
- Slides and loads
- Anchorage
- Accessibility and worksurface
