Standard Modules
Begin with a documented series and its planning envelope.

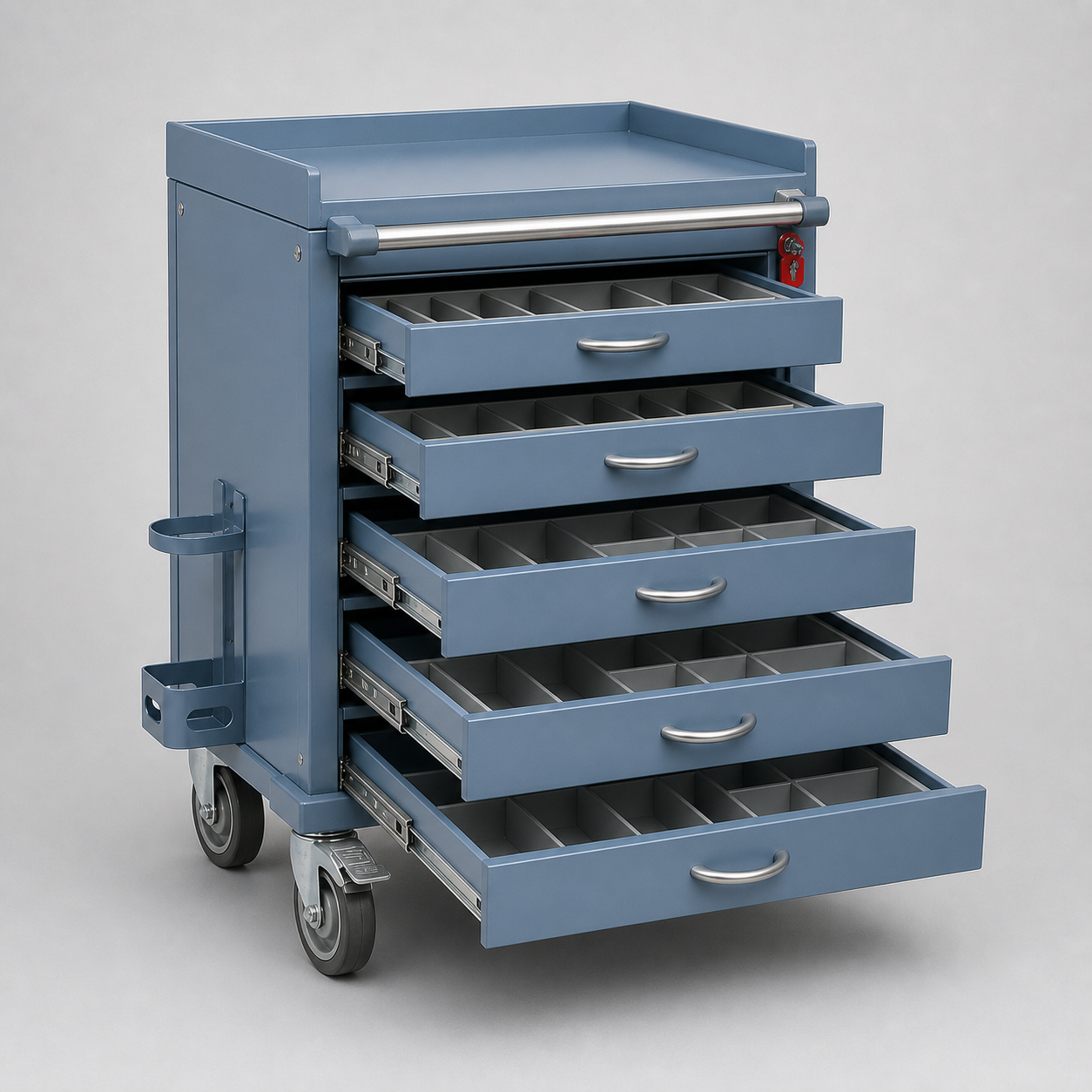

MS-30E / MC-18
Mobile Emergency Support Cart
Shown is a BPA configurable planning concept informed by clinical workflow research. Specifications can be customized to project needs.
Configuration: Custom sizing or validated dimensions
Final dimensions and details are coordinated to the approved project requirements.
Configure this moduleFinal dimensions and details are coordinated to the approved project requirements.
CONFIGURABLE PLANNING ENVELOPE28–34 W × 24–30 D × 38–46 H in
Standard planning envelope: 28–34 W × 24–30 D × 38–46 H in. Final dimensions follow approved shop drawings.
APPLICATIONSUrgent care · Clinical response support
Workflow position: Rapid-response supply deployment · Restocking point
CORE MODULE STRUCTURE
- Multi-drawer mobile body
- Accessory mounting zones
PROJECT-CONFIGURED OPTIONS
- Breakaway-lock provision
- Oxygen holder provision
- Top work surface
Project-Configured
Select listed options and coordinate dimensions through approved shop drawings.
Fully Custom
Develop a room-specific cabinet package when standard modules do not resolve the workflow.
PLANNING FEATURES
- Planned multi-drawer mobile body
- Planned accessory mounting zones
- Configuration may be adapted to the approved room plan
VERIFY BEFORE RELEASE
- Facility emergency-cart requirements
- Stability
- Lock, caster and accessory validation
