MS-30A / MC-19

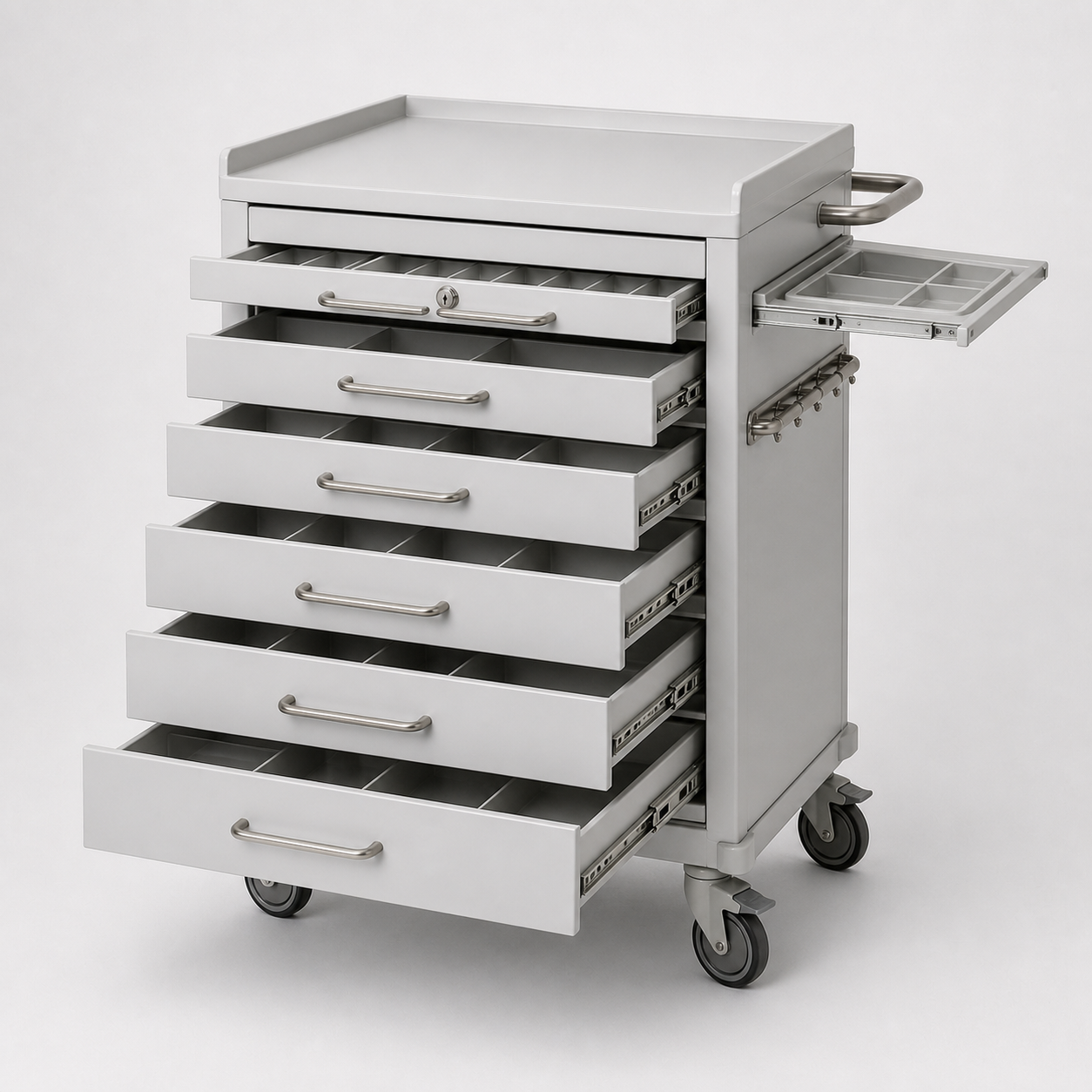

Mobile Anesthesia Support Cart
Shown is a BPA configurable planning concept informed by clinical workflow research. Specifications can be customized to project needs.
Configuration: Custom sizing or validated dimensions
Final dimensions and details are coordinated to the approved project requirements.
Configure this moduleFinal dimensions and details are coordinated to the approved project requirements.
CONFIGURABLE PLANNING ENVELOPE28–36 W × 24–30 D × 38–46 H in
Standard planning envelope: 28–36 W × 24–30 D × 38–46 H in. Final dimensions follow approved shop drawings.
APPLICATIONSProcedure suite · Surgical support
Workflow position: Anesthesia supply organization · Point-of-use access

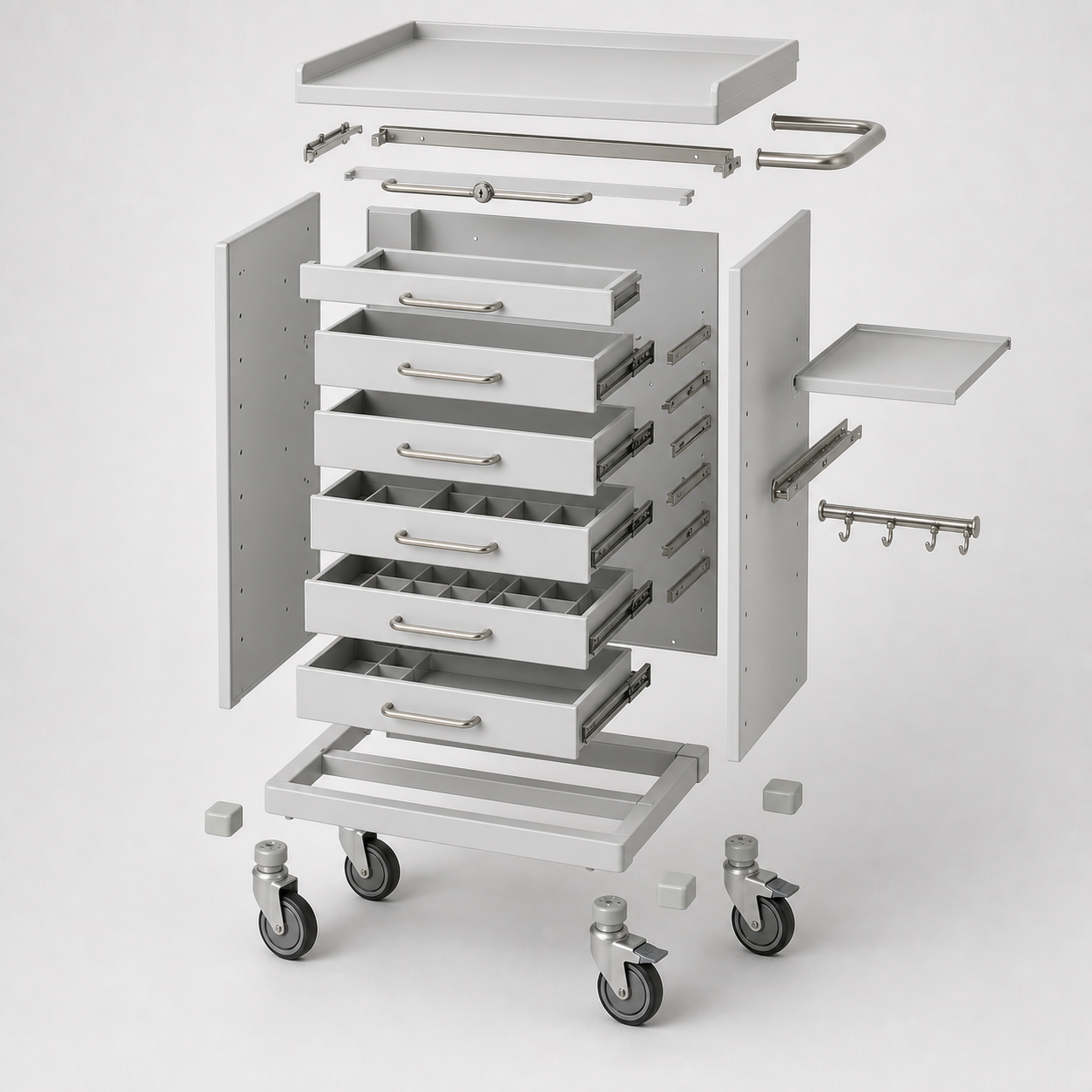

CORE MODULE STRUCTURE
- High-capacity drawer body
- Mobile chassis planning
PROJECT-CONFIGURED OPTIONS
- Lock-ready drawers
- Accessory rail
- Pull-out work shelf
Project-Configured
Select listed options and coordinate dimensions through approved shop drawings.
Fully Custom
Develop a room-specific cabinet package when standard modules do not resolve the workflow.
PLANNING FEATURES
- Planned high-capacity drawer body
- Planned mobile chassis planning
- Configuration may be adapted to the approved room plan
VERIFY BEFORE RELEASE
- Clinical program approval
- Security
- Loads, stability and mobility
