Standard Modules
Begin with a documented series and its planning envelope.

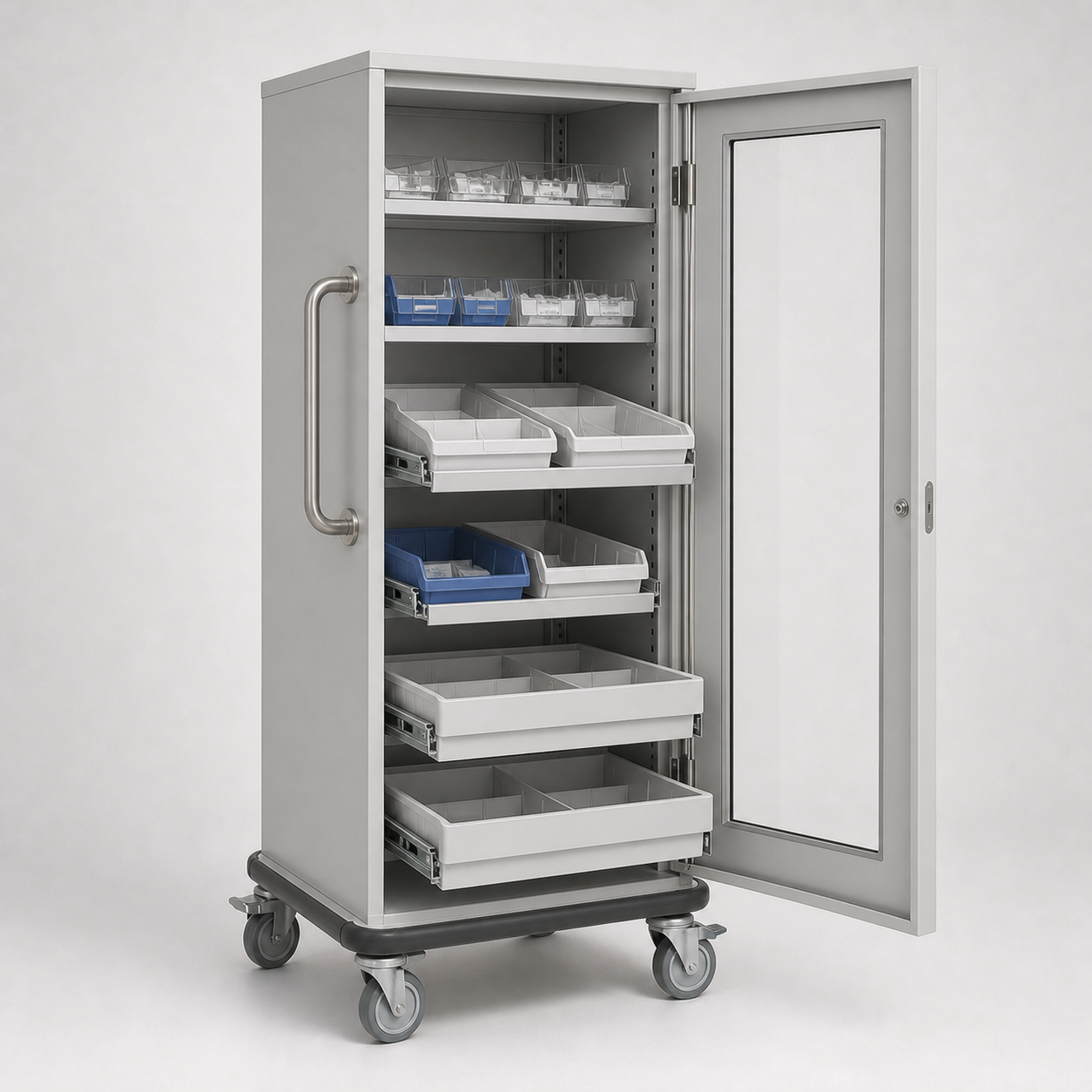

MS-24S / MC-20
Mobile Secure Supply Cabinet
Shown is a BPA configurable planning concept informed by clinical workflow research. Specifications can be customized to project needs.
Configuration: Custom sizing or validated dimensions
Final dimensions and details are coordinated to the approved project requirements.
Configure this moduleFinal dimensions and details are coordinated to the approved project requirements.
CONFIGURABLE PLANNING ENVELOPE24–36 W × 24–30 D × 48–72 H in
Standard planning envelope: 24–36 W × 24–30 D × 48–72 H in. Final dimensions follow approved shop drawings.
APPLICATIONSProcedure support · Secure supply movement
Workflow position: Locked mobile replenishment · Department storage

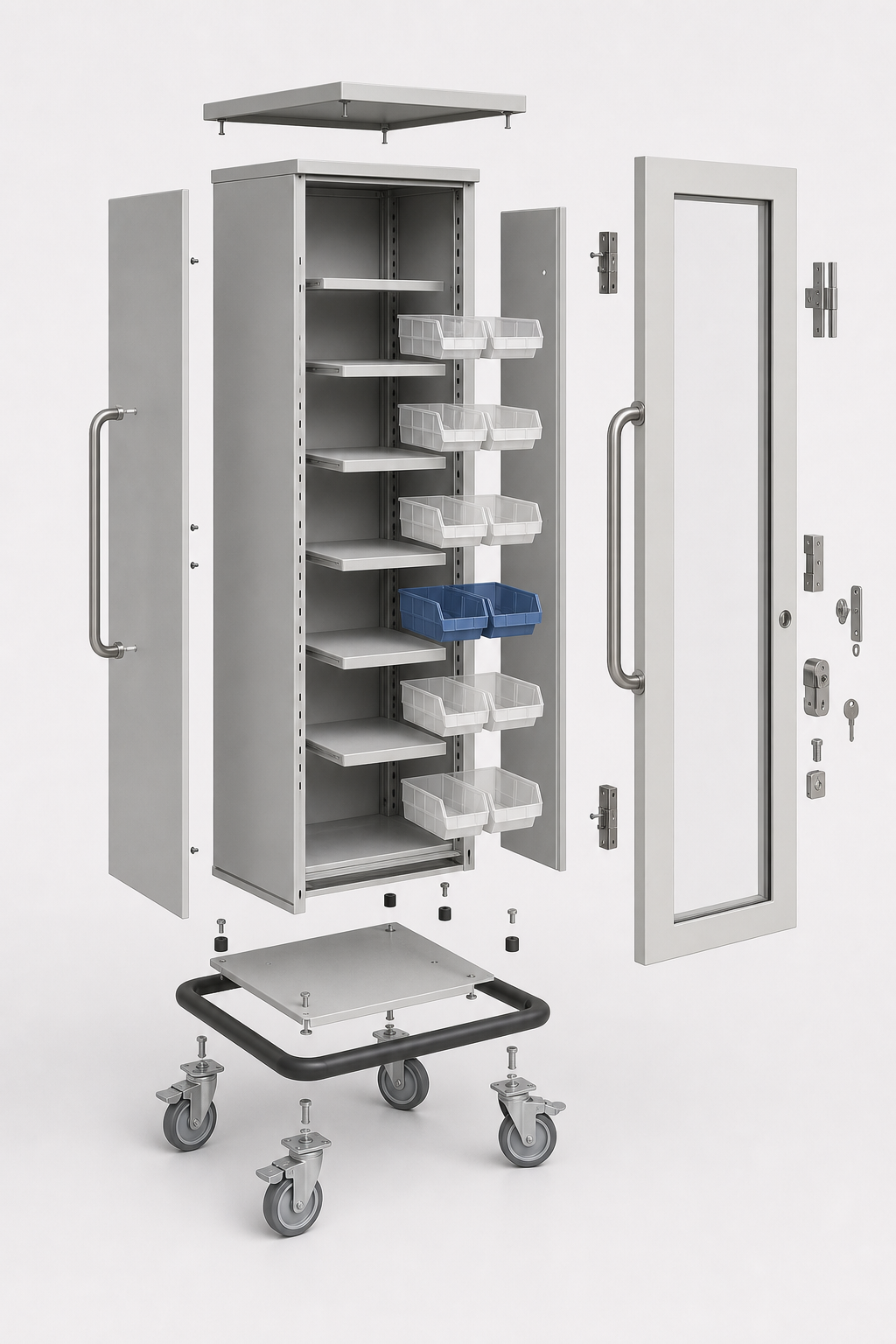

CORE MODULE STRUCTURE
- Tall mobile enclosure
- Shelf/tray planning
PROJECT-CONFIGURED OPTIONS
- Solid/glazed door
- Electronic-lock provision
- Internal bins
Project-Configured
Select listed options and coordinate dimensions through approved shop drawings.
Fully Custom
Develop a room-specific cabinet package when standard modules do not resolve the workflow.
PLANNING FEATURES
- Planned tall mobile enclosure
- Planned shelf/tray planning
- Configuration may be adapted to the approved room plan
VERIFY BEFORE RELEASE
- Security policy
- Stability
- Caster/brake, lock and shelf loads
