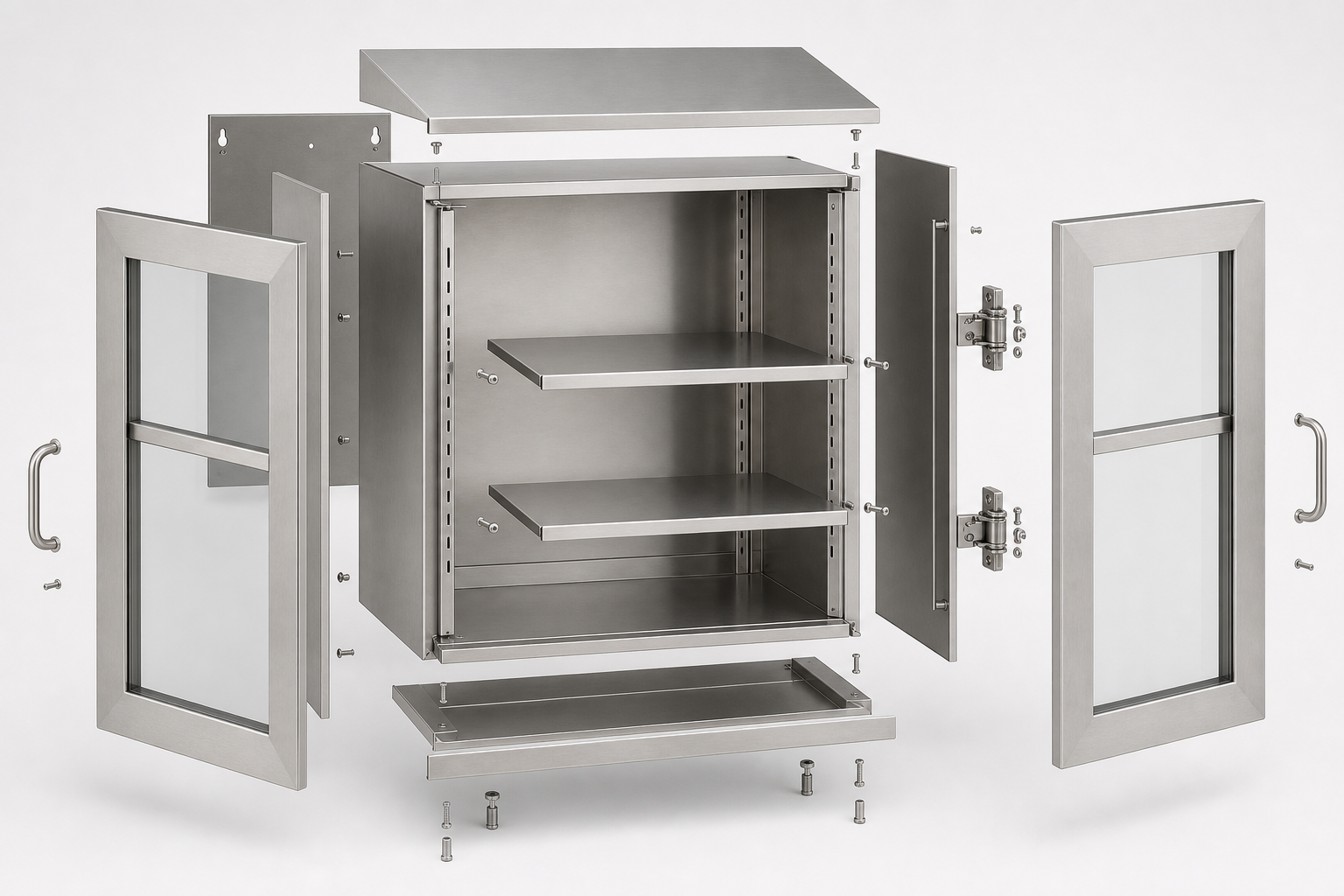

SS-30W / MC-21
Stainless Clinical Wall Cabinet
Shown is a BPA configurable planning concept informed by clinical workflow research. Specifications can be customized to project needs.
Configuration: Custom sizing or validated dimensions
Final dimensions and details are coordinated to the approved project requirements.
Configure this moduleFinal dimensions and details are coordinated to the approved project requirements.
CONFIGURABLE PLANNING ENVELOPE24–48 W × 12–16 D × 24–36 H in
Standard planning envelope: 24–48 W × 12–16 D × 24–36 H in. Final dimensions follow approved shop drawings.
APPLICATIONSProcedure room · OR support · Clean utility
Workflow position: Visible or enclosed wall storage · Point-of-use supplies
CORE MODULE STRUCTURE
- Stainless enclosure concept
- Adjustable shelf zones
PROJECT-CONFIGURED OPTIONS
- Solid/glazed doors
- Sloped top
- Lock-ready option
Project-Configured
Select listed options and coordinate dimensions through approved shop drawings.
Fully Custom
Develop a room-specific cabinet package when standard modules do not resolve the workflow.
PLANNING FEATURES
- Planned stainless enclosure concept
- Planned adjustable shelf zones
- Configuration may be adapted to the approved room plan
VERIFY BEFORE RELEASE
- Alloy/gauge/finish
- Welds and passivation
- Loads and anchorage
