SS-36T / MC-22

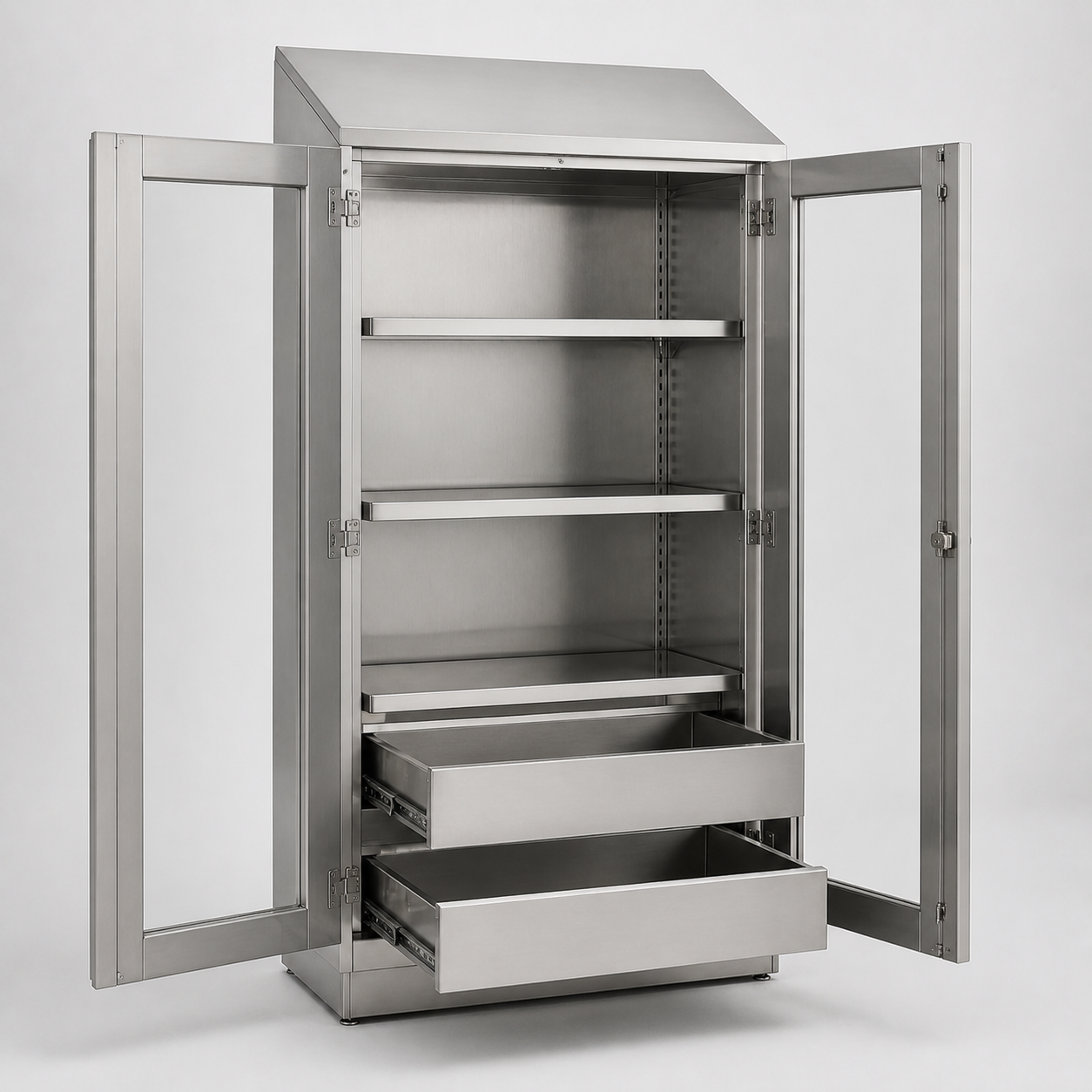

Stainless Tall Storage Cabinet
Shown is a BPA configurable planning concept informed by clinical workflow research. Specifications can be customized to project needs.
Configuration: Custom sizing or validated dimensions
Final dimensions and details are coordinated to the approved project requirements.
Configure this moduleFinal dimensions and details are coordinated to the approved project requirements.
CONFIGURABLE PLANNING ENVELOPE30–48 W × 18–24 D × 72–84 H in
Standard planning envelope: 30–48 W × 18–24 D × 72–84 H in. Final dimensions follow approved shop drawings.
APPLICATIONSOR support · Clean utility · Laboratory support
Workflow position: Bulk clinical storage · Clean distribution
CORE MODULE STRUCTURE
- Tall stainless enclosure concept
- Adjustable shelves
PROJECT-CONFIGURED OPTIONS
- Solid/glazed doors
- Sloped top
- Lock provision
Project-Configured
Select listed options and coordinate dimensions through approved shop drawings.
Fully Custom
Develop a room-specific cabinet package when standard modules do not resolve the workflow.
PLANNING FEATURES
- Planned tall stainless enclosure concept
- Planned adjustable shelves
- Configuration may be adapted to the approved room plan
VERIFY BEFORE RELEASE
- Alloy/gauge/finish
- Shelf loads
- Anchorage and cleanability
