SS-48I / MC-23

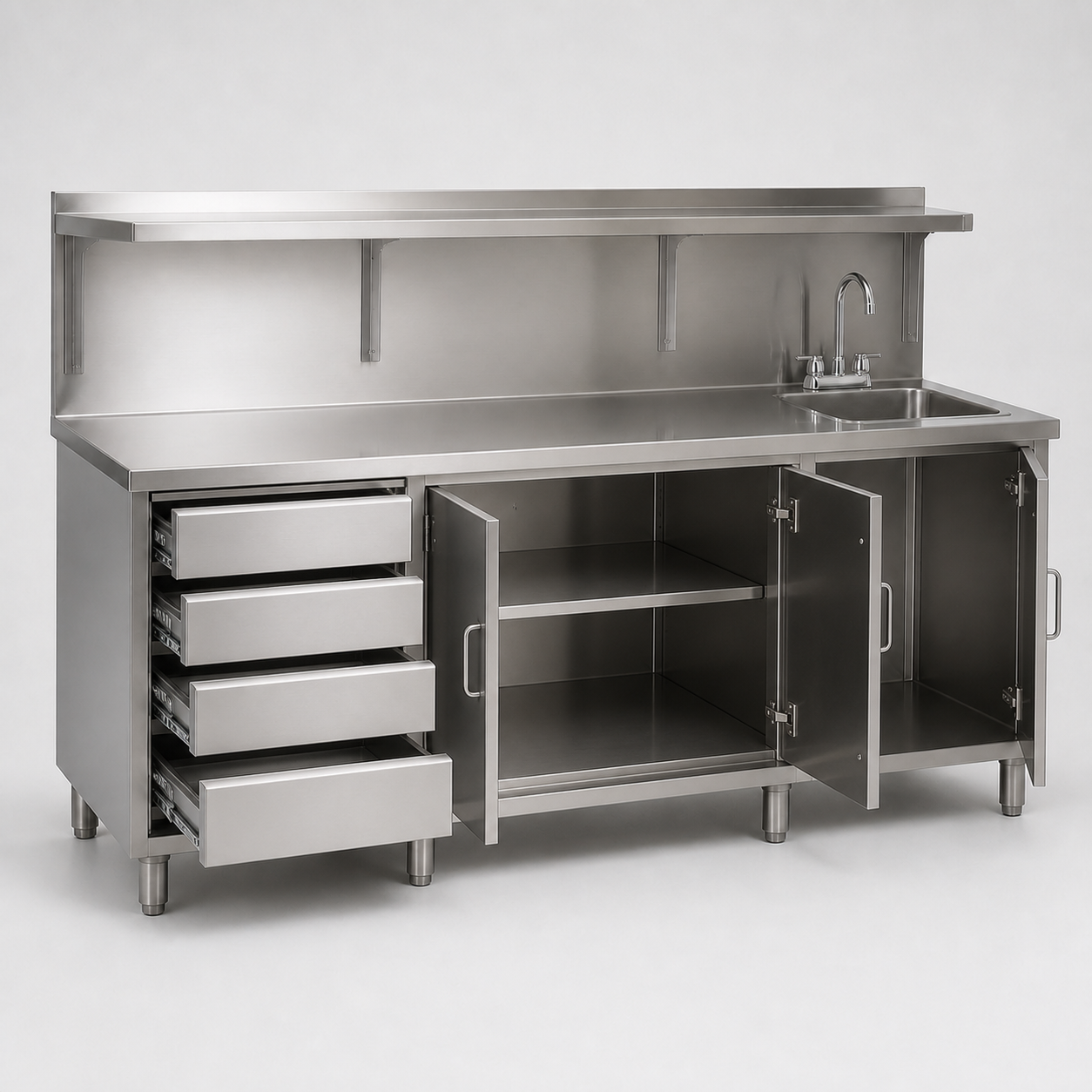

Stainless Instrument Workstation
Shown is a BPA configurable planning concept informed by clinical workflow research. Specifications can be customized to project needs.
Configuration: Custom sizing or validated dimensions
Final dimensions and details are coordinated to the approved project requirements.
Configure this moduleFinal dimensions and details are coordinated to the approved project requirements.
CONFIGURABLE PLANNING ENVELOPE48–96 W × 24–30 D × 34–36 H in
Standard planning envelope: 48–96 W × 24–30 D × 34–36 H in. Final dimensions follow approved shop drawings.
APPLICATIONSProcedure support · Instrument processing
Workflow position: Instrument staging · Clinical preparation

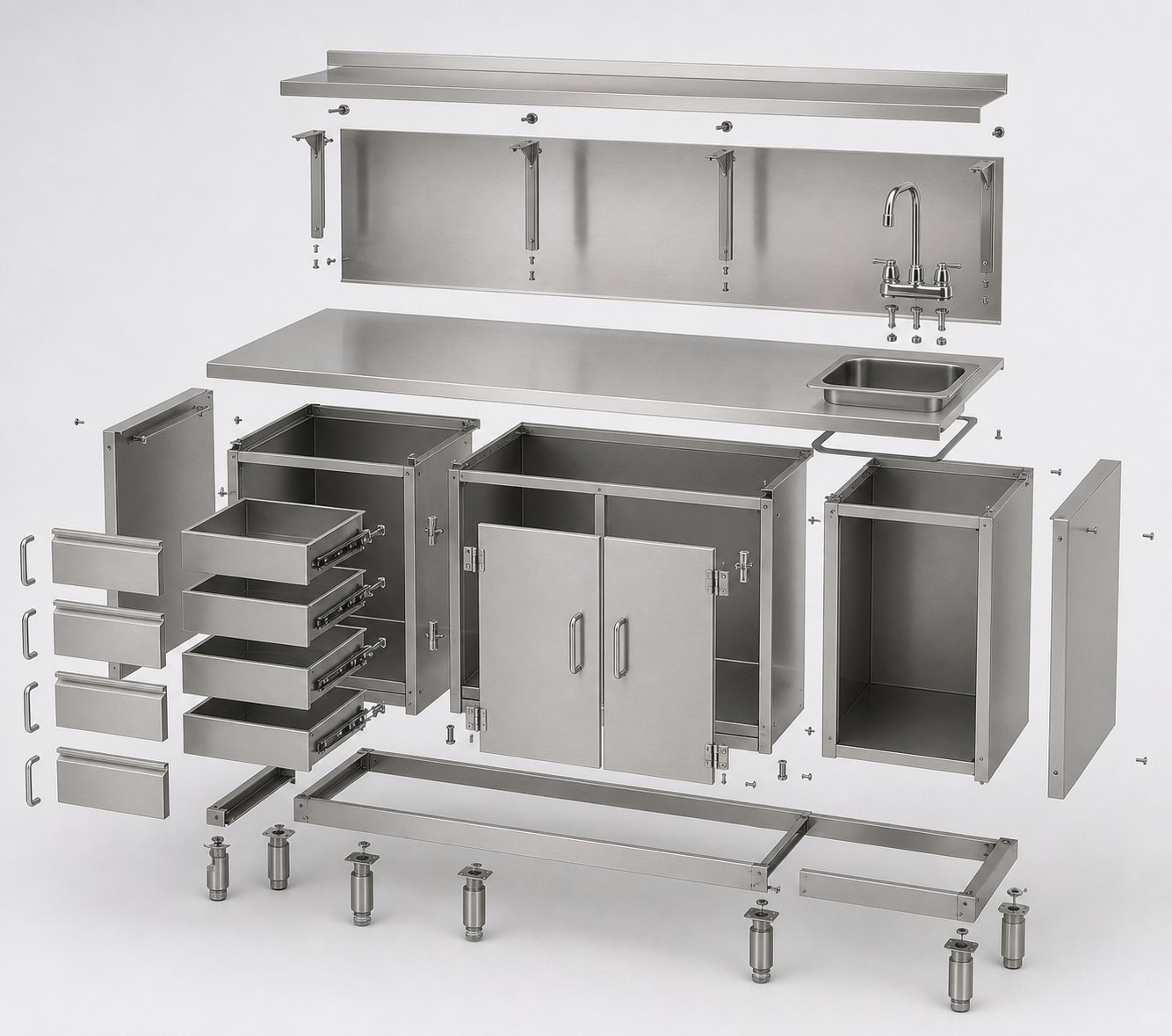

CORE MODULE STRUCTURE
- Stainless worksurface concept
- Base storage/equipment bays
PROJECT-CONFIGURED OPTIONS
- Sink
- Drawer/door mix
- Upper shelf
Project-Configured
Select listed options and coordinate dimensions through approved shop drawings.
Fully Custom
Develop a room-specific cabinet package when standard modules do not resolve the workflow.
PLANNING FEATURES
- Planned stainless worksurface concept
- Planned base storage/equipment bays
- Configuration may be adapted to the approved room plan
VERIFY BEFORE RELEASE
- Alloy and fabrication
- Equipment/utilities
- Worksurface and structural loads
