SS-30P / MC-24

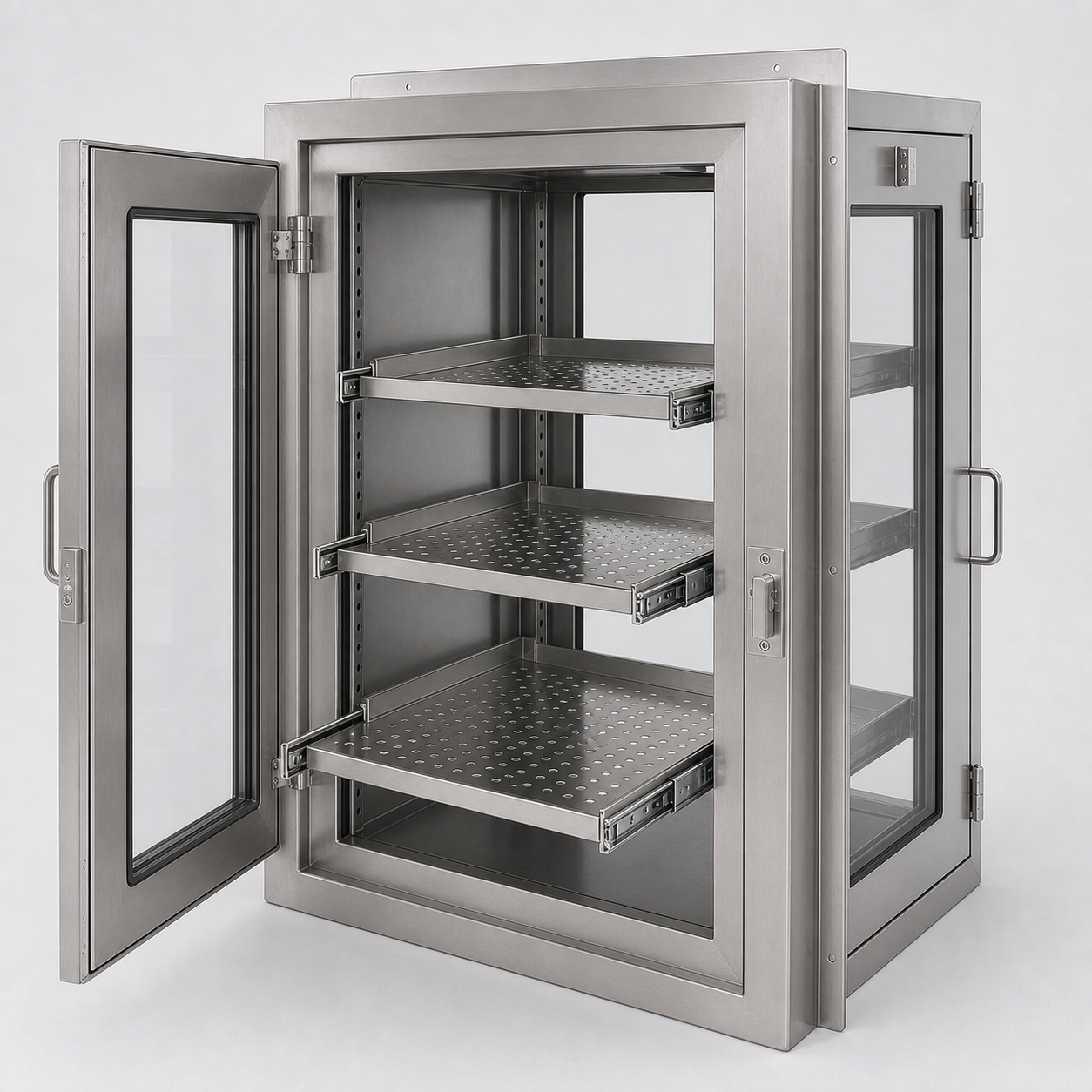

Stainless Pass-Through Cabinet
Shown is a BPA configurable planning concept informed by clinical workflow research. Specifications can be customized to project needs.
Configuration: Custom sizing or validated dimensions
Final dimensions and details are coordinated to the approved project requirements.
Configure this moduleFinal dimensions and details are coordinated to the approved project requirements.
CONFIGURABLE PLANNING ENVELOPE24–42 W × 18–30 D × 36–72 H in
Standard planning envelope: 24–42 W × 18–30 D × 36–72 H in. Final dimensions follow approved shop drawings.
APPLICATIONSProcedure suite boundary · Clean/controlled transfer
Workflow position: Two-room material transfer · Controlled replenishment

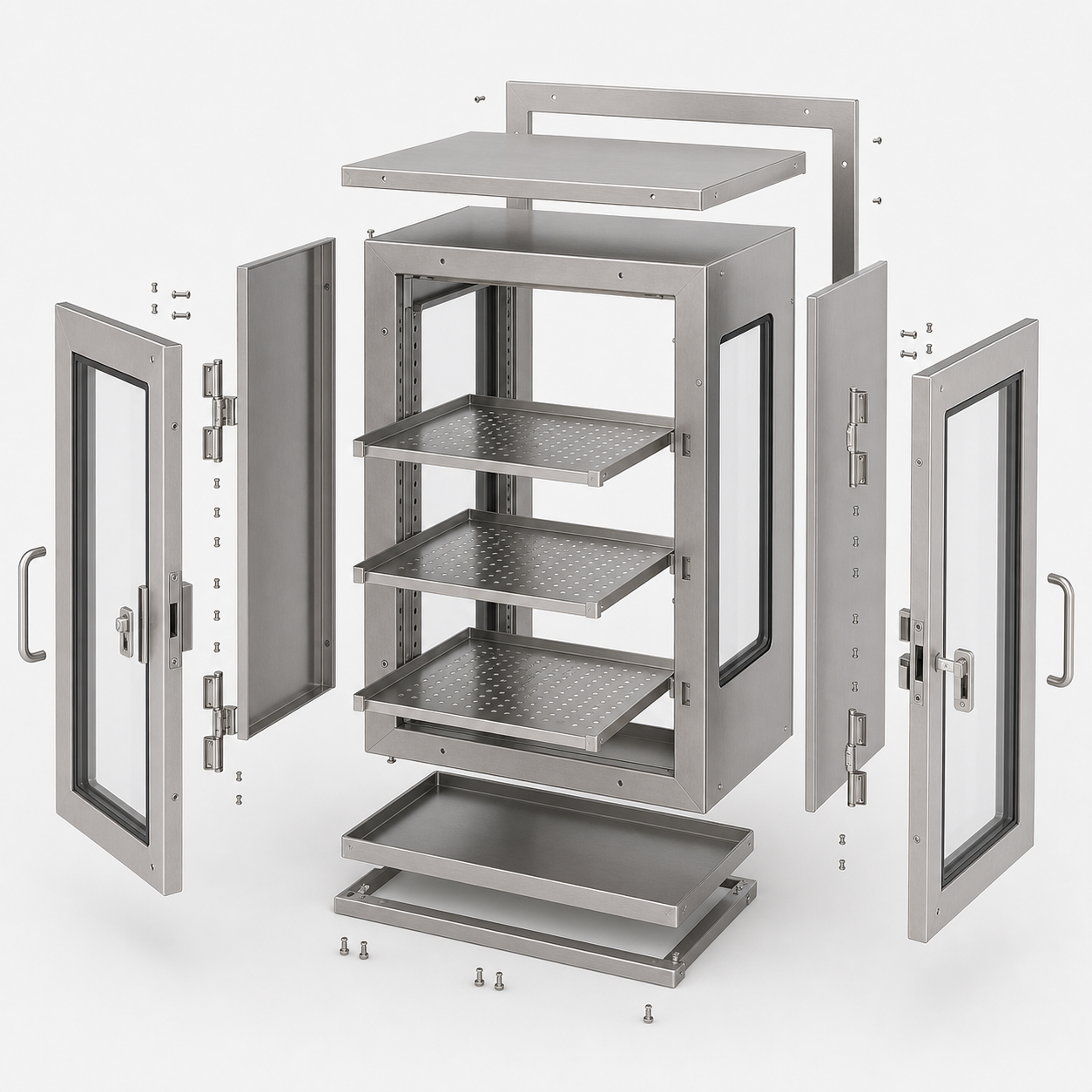

CORE MODULE STRUCTURE
- Two-sided stainless enclosure concept
- Wall-opening interface
PROJECT-CONFIGURED OPTIONS
- Glazed/solid doors
- Interlock provision
- Shelf/tray interior
Project-Configured
Select listed options and coordinate dimensions through approved shop drawings.
Fully Custom
Develop a room-specific cabinet package when standard modules do not resolve the workflow.
PLANNING FEATURES
- Planned two-sided stainless enclosure concept
- Planned wall-opening interface
- Configuration may be adapted to the approved room plan
VERIFY BEFORE RELEASE
- Wall/fire rating
- Door protocol/interlock
- Pressure/infection-control review
- Anchorage
